Monday, March 29, 2021

Turnouts Turnouting

 These were snap switches for so long that its actually nice to watch them throw in a more prototypical fashion:

This animated GIF is a large file, give it a moment to load

Yes sir!

Nice to watch.

Dandy

Monday, March 15, 2021

Servoed

 Replacing all the old NJ International Snap Turnout Machines with Servos.


Lit! Turnouts installed and wired to the control panel.

    Last time I had just finished fabricating a disconnect cable between the layout and control panel. Next came installing this connector connection. This was much more difficult since each wire is a custom length between the connector and the servo.



    Adding a disconnect cable between the layout and the control panel really created a lot of extra work for me. But I've gotten quite good at making a Lineman Splice!









The servos were mounted simply with a piece of Double Sided Mounting Tape. We'll see how that works out. If its a problem I'll use some sort of mounting bracket.

    Spaghetti Bowl 2021. Servos only require 3 wires each for control and feedback compared to the NJ Internationals each needing 9 wires!  I thought the servos replacing the switch machines would clear up some of those wires, but those block occupancy detectors and street lamps have added quite a bit more wires.

    As each servo was installed and wired it was connected to the OctoIII for centering and alignment. I had to move the OctoIII from its original position since the plugs on some of the pushbuttons were resting on it.  But its still not right- its time to build yet another control center!

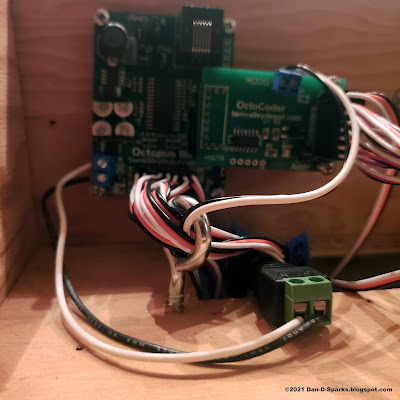

I also added a steel ring as an anchor for the cable wires so should the cable get yanked it doesn't tear out the OctoIII.  I hope that doesn't happen, but should it, I hope it works!

I'm still fine tuning and working out some bugs with all this. But once that's done the turnouts will then be programed for DCC control.

Yes Sir! Programed for DCC control!

Dandy
